Antal Low Friction Rings 7.0mm / D1-10mm / D2-25mm / T-12mm / SWL 800kg
€17.83* / Stk
Available, delivery time: 2-4 business days
| Art: | "ø" | "D1" | "D2" | "T" | weight | SWL | |
| 119420705 | 5mm | 7mm | 18mm | 9mm | 3gr. | 400kg | |
| 119421007 | 7mm | 10mm | 25mm | 12mm | 5gr. | 800kg | |
| 119421410 | 10mm | 14mm | 35mm | 15mm | 14gr. | 1600kg | |
| 119422014 | 14mm | 20mm | 50mm | 22mm | 44gr. | 3200kg | |
| 119422820 | 20mm | 28mm | 70mm | 31mm | 120gr. | 6500kg | |
| 119423828 | 28mm | 38mm | 99mm | 44mm | 338gr. | 9500kg |
Product information "Antal Low Friction Rings 7.0mm / D1-10mm / D2-25mm / T-12mm / SWL 800kg"
Antal Low Friction Rings – high load, lightweight and maintenance-free fairlead solution
Antal Low Friction Rings are a modern, highly efficient solution for rope deflection and load distribution in sailing and rigging applications. Manufactured from hard anodized aluminium, these rings combine extreme strength, minimal friction and very low weight.
Thanks to their smooth, precision-machined surface, low friction rings allow efficient line guidance for halyards, sheets and Dyneema® lines. Unlike traditional blocks, they operate without moving parts, making them wear-free, maintenance-free and exceptionally durable.
Key Features
- Low friction: Optimized shape for smooth line deflection
- High strength: Excellent load capacity in a compact design
- Ultra-lightweight: Significantly lighter than conventional blocks
- Maintenance-free: No bearings or moving components
- Corrosion-resistant: Hard anodized aluminium for long service life

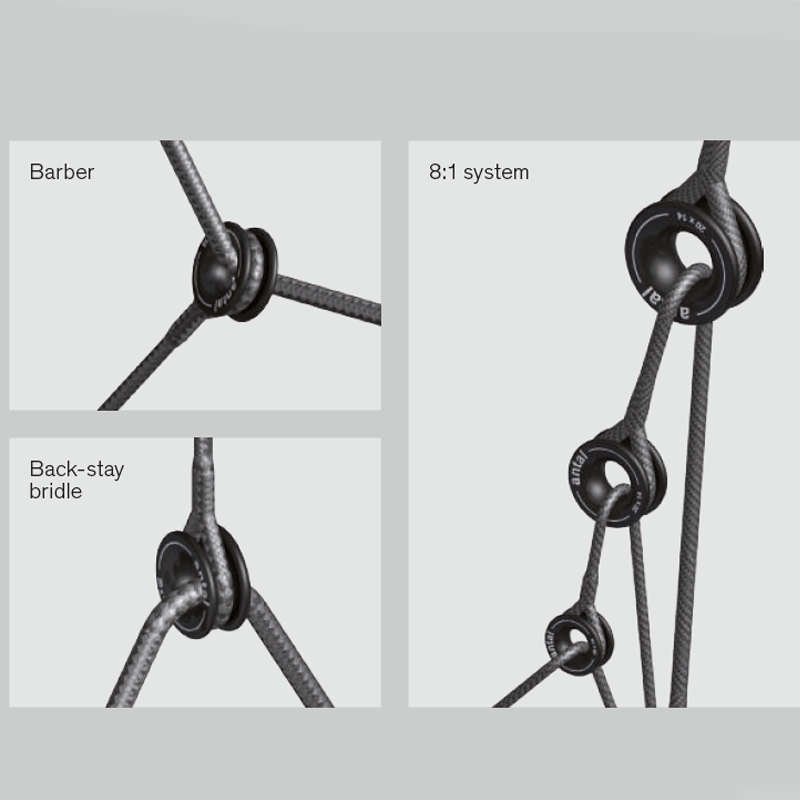

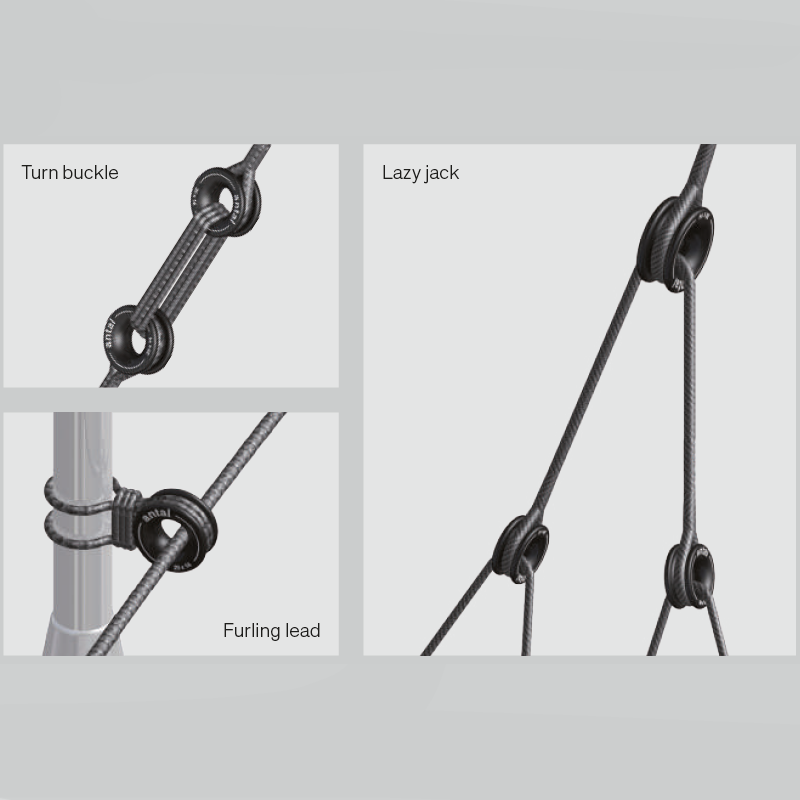

Typical Applications
- Halyard and sheet deflection on sailing yachts
- Rigging systems and rope guidance
- Dyneema® soft shackles and textile connections
- Weight-optimized deck hardware
- Technical and industrial applications with high loads
Material & Construction
- Material: hard anodized aluminium
- Optimized geometry for reduced friction
- No moving parts – no mechanical wear

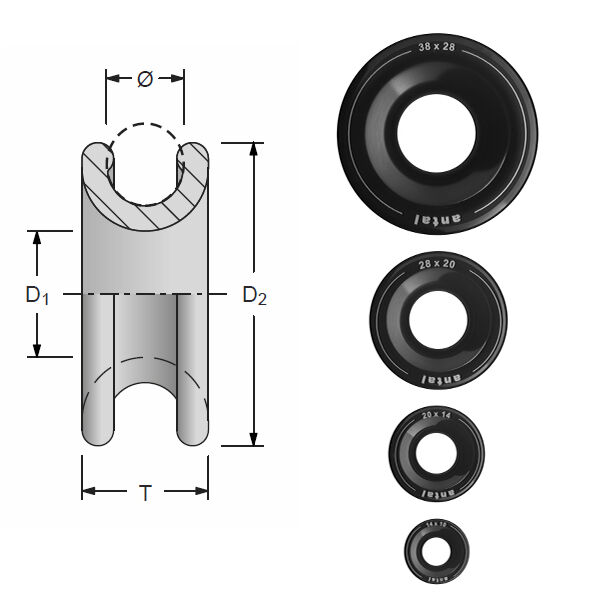

Available Sizes & Technical Data
| Item | Model | Line Ø | D1 | D2 | T | Weight | SWL |
|---|---|---|---|---|---|---|---|
| 119420705 | R07.05 | 5 mm | 7 mm | 18 mm | 9 mm | 3 g | 400 kg |
| 119421007 | R10.07 | 7 mm | 10 mm | 25 mm | 12 mm | 5 g | 800 kg |
| 119421410 | R14.10 | 10 mm | 14 mm | 35 mm | 15 mm | 14 g | 1600 kg |
| 119422014 | R20.14 | 14 mm | 20 mm | 50 mm | 22 mm | 44 g | 3200 kg |
| 119422820 | R28.20 | 20 mm | 28 mm | 70 mm | 31 mm | 120 g | 6500 kg |
| 119423828 | R38.28 | 28 mm | 38 mm | 99 mm | 44 mm | 338 g | 9500 kg |
Antal Low Friction Rings are the ideal choice for sailors, riggers and technical users who require a lightweight, durable and highly reliable solution. Especially in modern Dyneema-based rigging systems, they offer an efficient and maintenance-free alternative to conventional pulley blocks.
