Assembly - Threaded Terminal for 5.0 mm Wire Rope
€28.56* / Stk
Unit price: 28,56 €* / Stk
Produkt-Highlights
Assembly - M10 threaded terminal for 5.0 mm wire rope
- Easy and safe installation without machines.

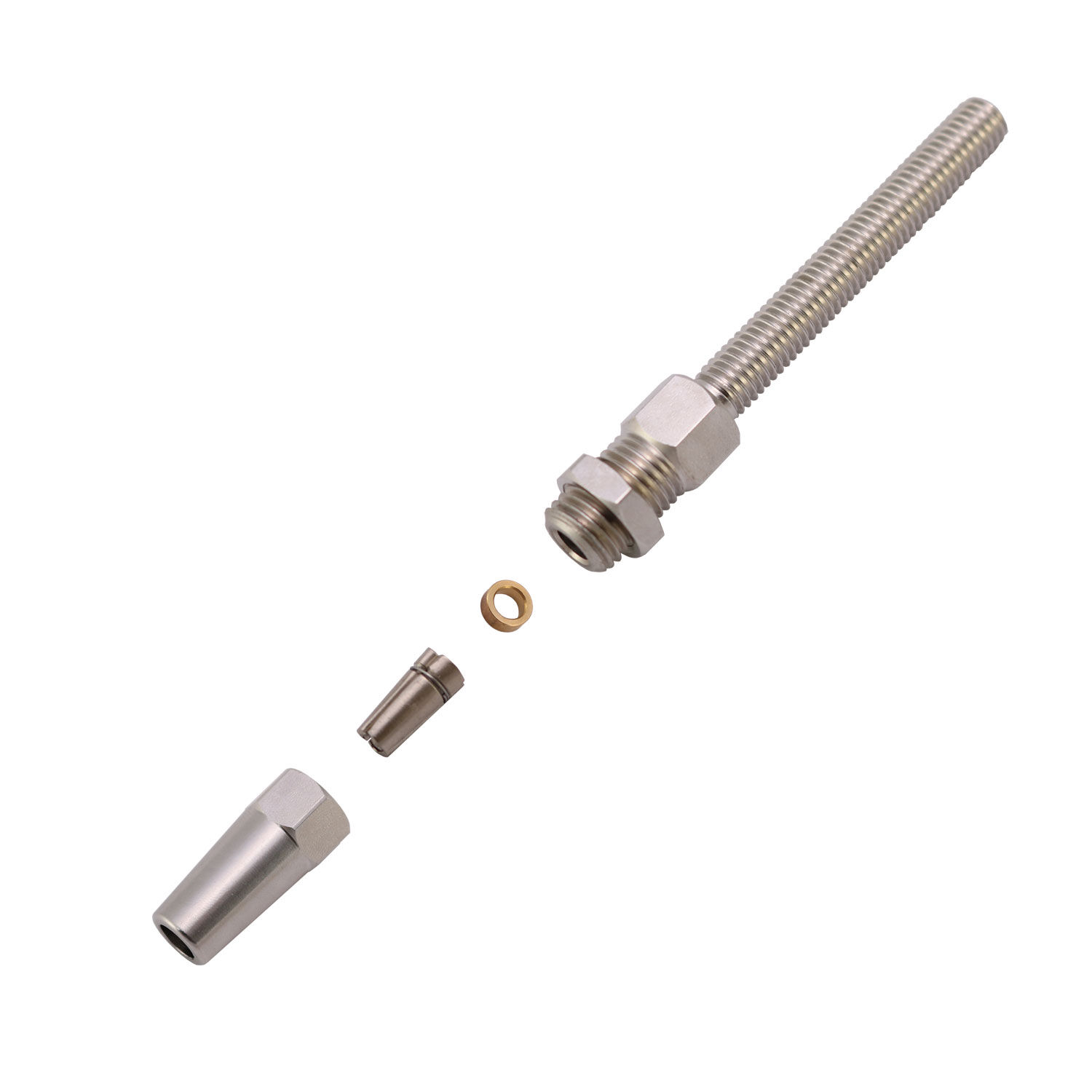

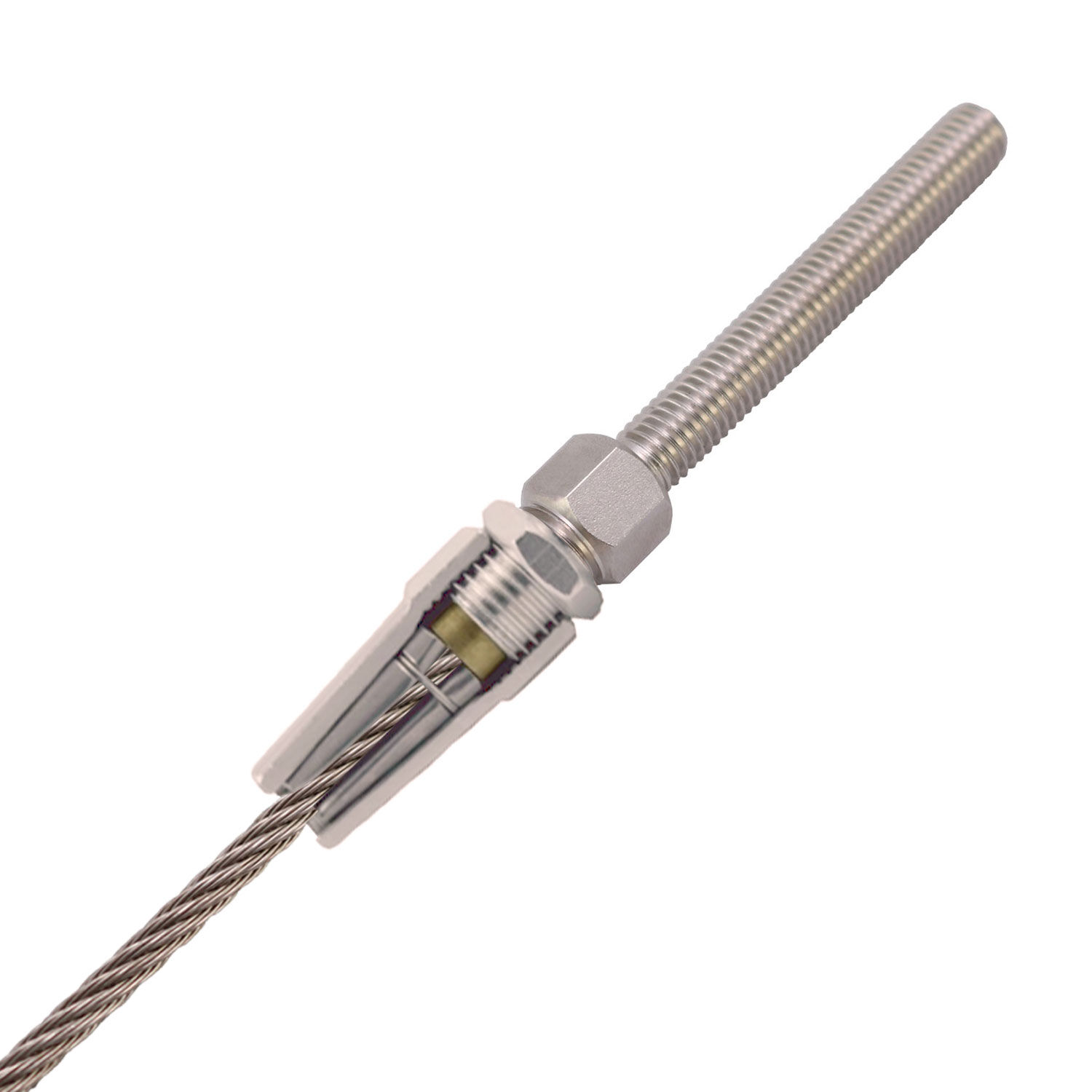

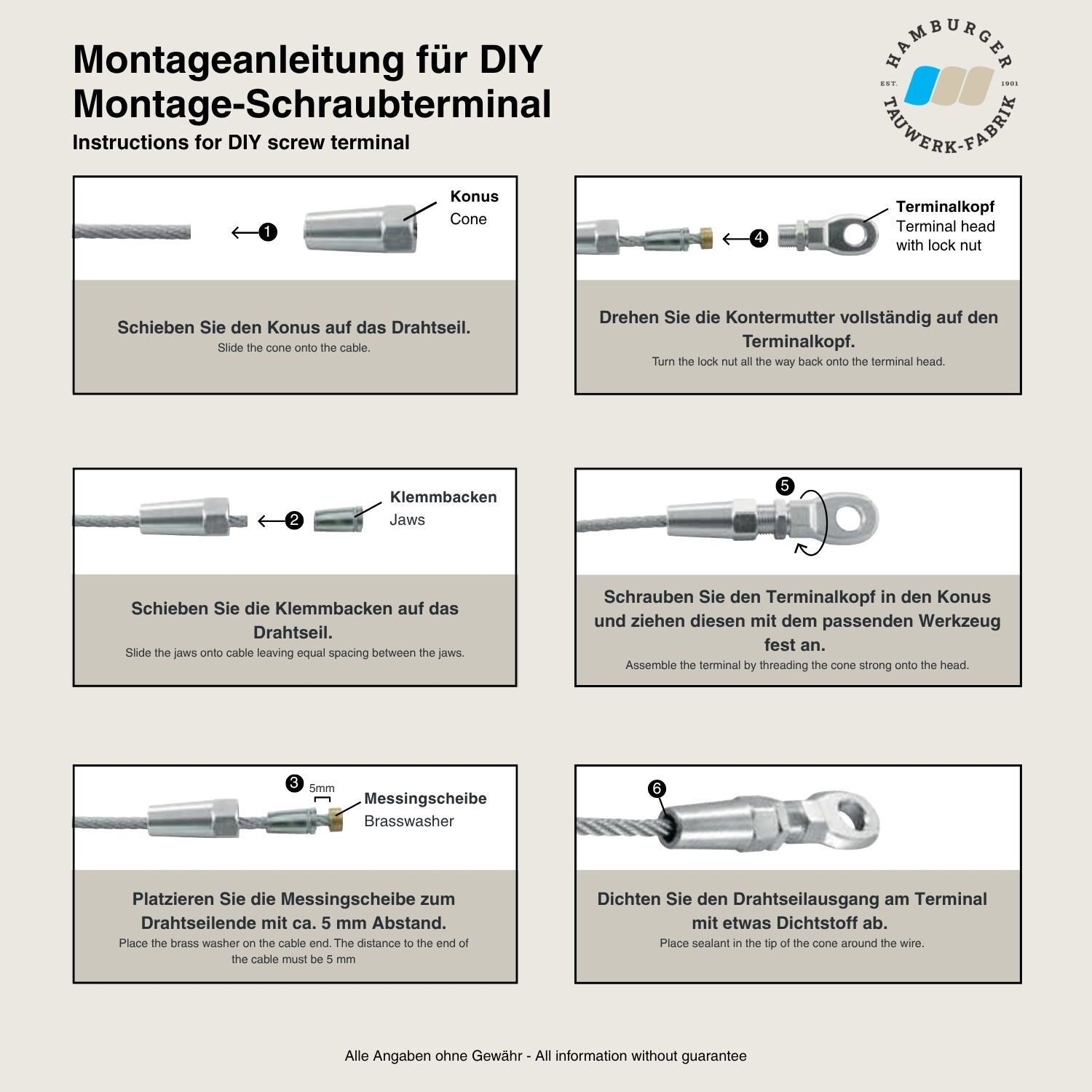

- Simply slide the threaded sleeve, the cone and the press ring onto the wire rope. The terminal is then screwed on - finished
- Suitable for wire rope with the construction: 1x19, 7x7 and 7x19
- Breaking load approx. 85% of the wire rope
- Material: A4-AISI 316 stainless steel

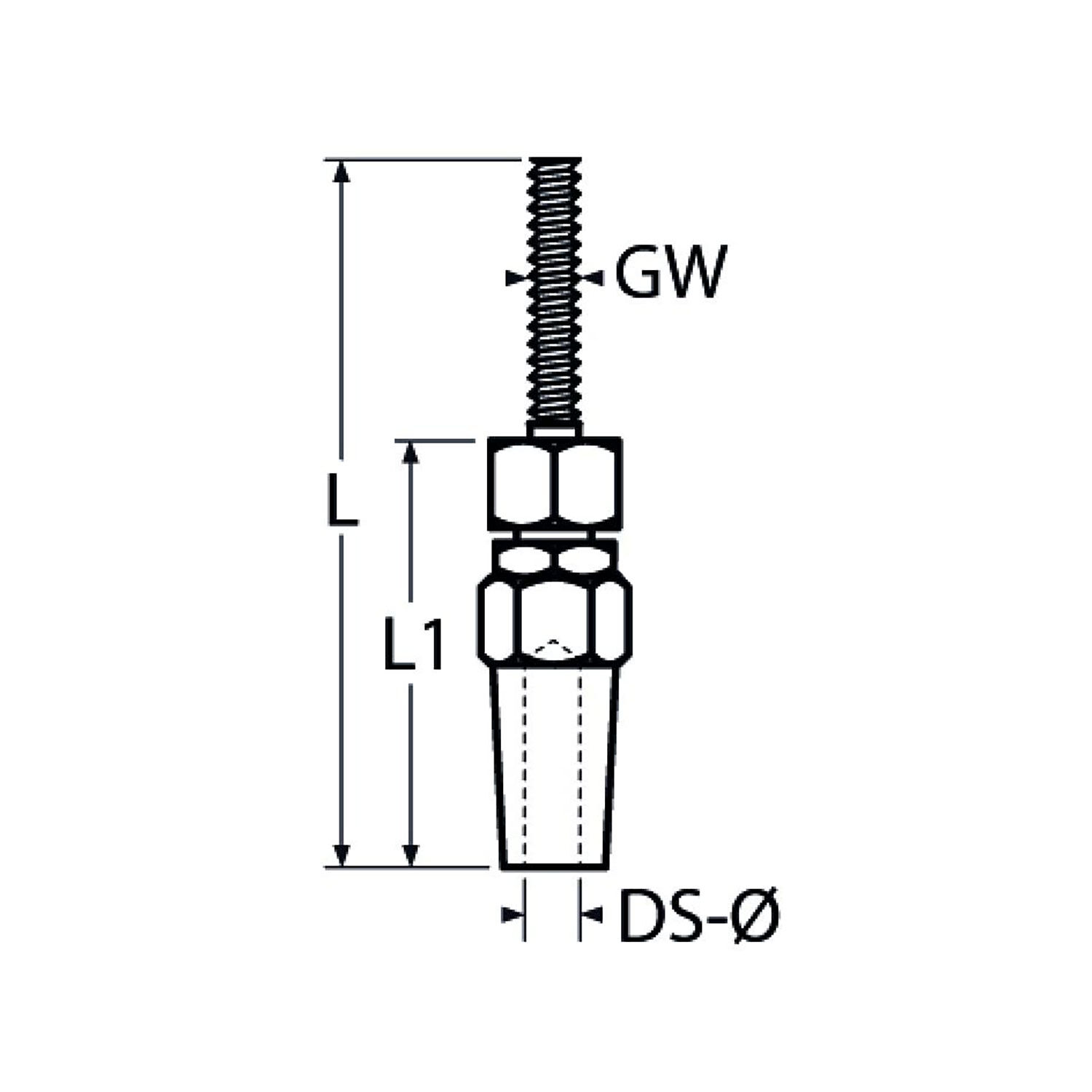

Dimensions:
- Wire rope diameter (DS-Ø): 5mm
- Thread (GW): M10
- Drive : SW16
- Length (L): 117mm
- Length 1 (L1): 63mm
Fast delivery Fast shipping directly from our Hamburg factory & workshop
99.75% Satisfied customers across 82.000+ reviews
Product number: 10413105
Customers who bought this item also bought
Assembly - Eye Terminal for 5.0 mm Wire Rope
Variants from €21.89
Regular price: €24.99
Stainless Steel Clamping Screw M10 Fork-Fork
Variants from €4.32
Regular price: €12.44 Stainless Steel Clamping Screw M8 Fork-Fork
Variants from €4.32
Regular price: €7.85 Product information "Assembly - Threaded Terminal for 5.0 mm Wire Rope"
Assembly - M10 threaded terminal for 5.0 mm wire rope
- Easy and safe installation without machines.
- Simply slide the threaded sleeve, the cone and the press ring onto the wire rope. The terminal is then screwed on - finished
- Suitable for wire rope with the construction: 1x19, 7x7 and 7x19
- Breaking load approx. 85% of the wire rope
- Material: A4-AISI 316 stainless steel
Dimensions:
- Wire rope diameter (DS-Ø): 5mm
- Thread (GW): M10
- Drive : SW16
- Length (L): 117mm
- Length 1 (L1): 63mm
