DIY Self-Assembly Rope Tensioner for 5mm Wire Rope with Hanger Bolt M6 / Right
€7.04* / Stk
Unit price: 7,04 €* / Stk
Available, delivery time: 2-4 business days
| Quantity | Unit price per Stk |
|---|---|
| 1 To 49 Stk | €7.04* |
| 50 To 99 Stk | €6.33* |
| Ab 100 Stk | €5.63* |
Produkt-Highlights

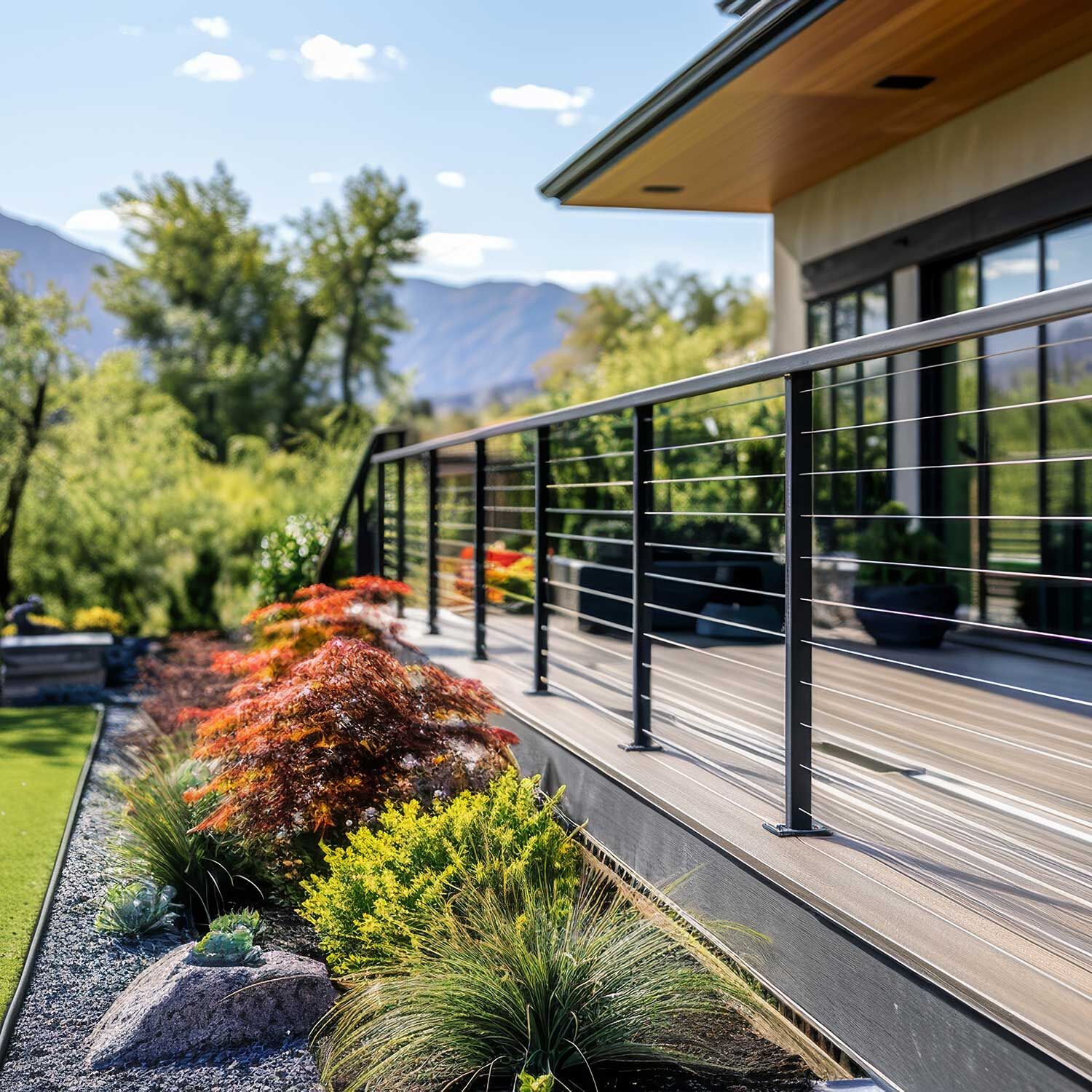

- For mounting between posts and walls in wood or with dowels in stone, concrete or granite
- With M6 socket screw right-hand thread
- Length: 66mm
- Made from high-quality stainless steel V4A 1.4401 (AISI316)
- This variant requires 1x right-hand and 1x left-hand thread terminal per cable
Fast delivery Fast shipping directly from our Hamburg factory & workshop
99.75% Satisfied customers across 82.000+ reviews
Product number: 1014615S-R Manufacturer Information
Customers who bought this item also bought
Stainless Steel Wire Rope 7x7 / 5.0mm / By The Meter
Variants from €0.27
Regular price: €2.59
DIY Rope Tensioner 5mm with GK26 Ball Joint
Regular price: €14.36
Ringbolzen / Augbolzen mit Kragen und Holzgewinde 8 x 50mm, Edelstahl A4 - AISI 316
Variants from €3.10
Regular price: €4.41
Stainless Steel Wall Bracket for Trellis Systems / WH50
Variants from €0.83
Regular price: €4.95
Rope Cross Clamp Mini for 5.0 mm Wire Rope
Variants from €1.65
Regular price: €2.36
Stainless Steel EyeBolt with Wooden Thread A4 6x50mm
Variants from €1.68
Regular price: €2.12
DIY Self-Assembly Rope Tensioner for 5mm Wire Rope with M6x60 Screw / Right
Regular price: From €4.12
Stainless Steel Wire Rope 7x19 / 5.0mm / By The Meter
Variants from €0.54
Regular price: €1.78
Stainless Steel Wire Rope 1x19 / 5.0mm / By The Meter
Variants from €0.35
Regular price: €2.75
Stainless Steel Thimble 5mm
Variants from €0.12
Regular price: €0.30 Product information "DIY Self-Assembly Rope Tensioner for 5mm Wire Rope with Hanger Bolt M6 / Right"
Installation:
The wire rope is fully inserted into the hole and secured by tightening the three grub screws. This secures the rope in the tensioner. The cable can be shortened to the required length on site, eliminating the need for time-consuming crimping. The terminal has an M6 internal thread on the opposite side into which the fastening screw is screwed. Tightening the fastening screw simultaneously tensions the cable.
However, it should be noted that the terminals are not suitable for suspended or load-bearing loads.
Self-assembly terminal
| Item No. | Wire rope Ø | Thread - G | Ø 1 | Ø 2 | X | L1 | L2 |
| DIY5i | 5 | M6 - RH | 5,4 | 13 | 3x M6 | 66 | 20 |
Hanger bolt M6
| article | Wire Ø | Thread - G | L 1 | L 2 | L |
| bST6 | - | M6 - RH-LH | 50 | 30 | 85 |
