Eye Swage Terminal for 2.0mm Wire Rope / Stainless Steel V4A
€2.97* / Stk
Unit price: 2,97 €* / Stk
Produkt-Highlights
- Material: Edelstahl A4 - AISI 316
- Drahtseil-Durchmesser (DS-Ø): 2,0mm
- Länge 1 (L1): 48mm
- Innere Länge (iL): 25mm
- Innendurchmesser (iD): 5,4mm
- Durchmesser 1 (D1): 5,5mm
- Stärke (S): 3,0mm
Fast delivery Fast shipping directly from our Hamburg factory & workshop
99.75% Satisfied customers across 82.000+ reviews
Product number: 10411020
Customers who bought this item also bought
Stainless Steel Turnbuckle M4 / Fork-Fork
Variants from €4.32
Regular price: €5.21
Stainless Steel Wire Rope 7x7 / 2.0mm / By The Meter
Variants from €0.27
Regular price: €0.38

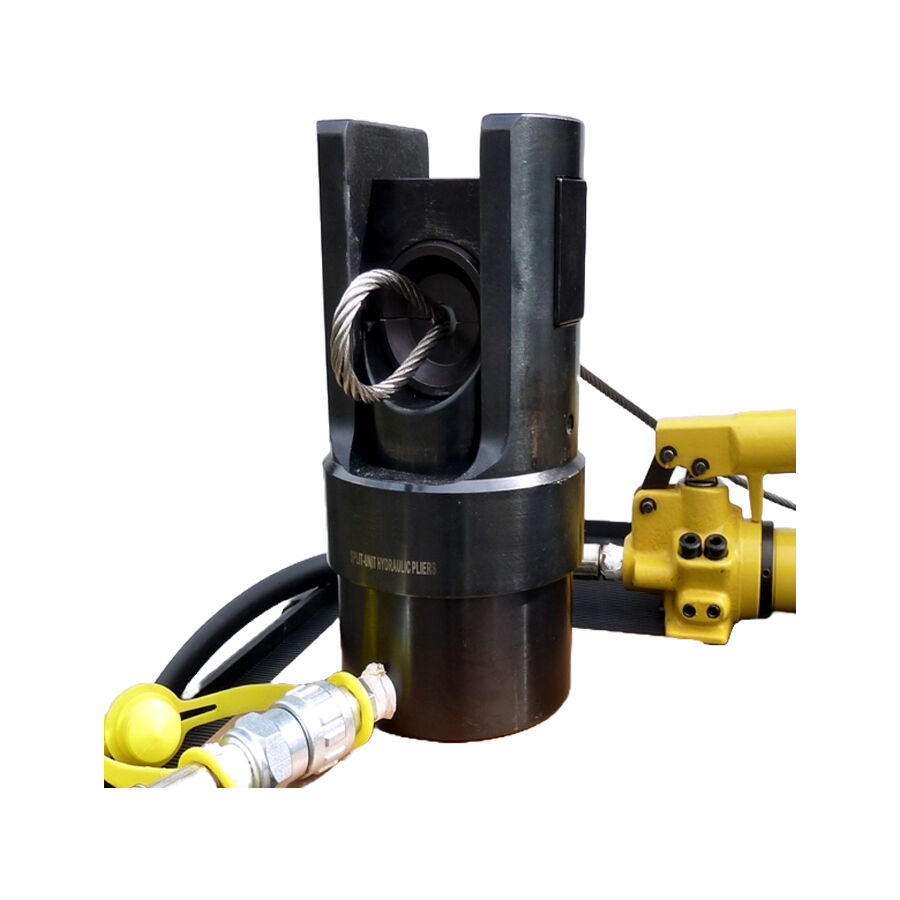

Portable Hydraulic Press Head 30T
Regular price: €446.25

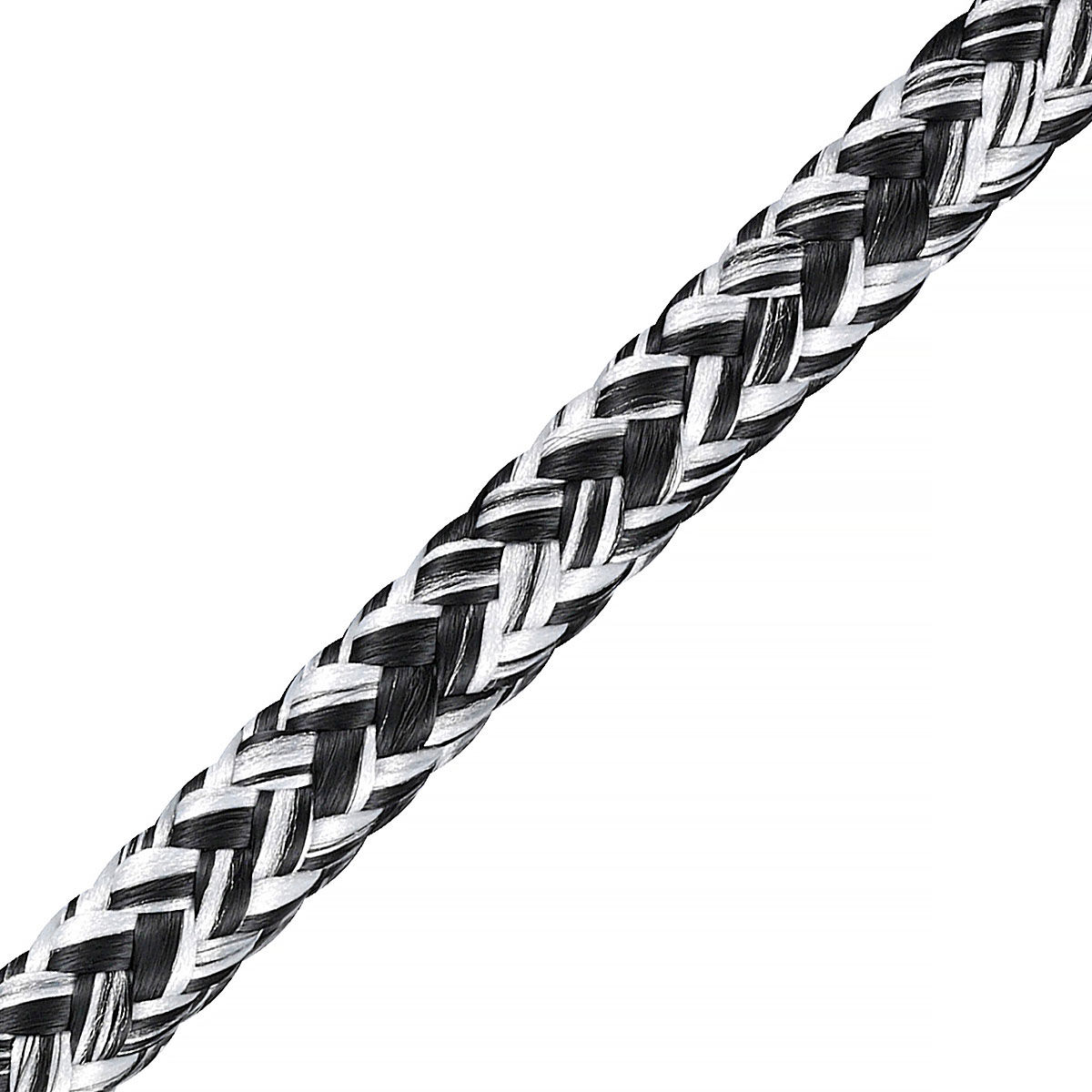

LIROS Magic Pro 5.0mm / 16-Plait / Breaking Load 1250daN / White-Black
Variants from €0.85
Regular price: €2.00
Maxi Fork Rolling Terminal 5.0 mm Wire Rope
Variants from €1.85
Regular price: €4.65 Maxi Fork Rolling Terminal 4.0 mm Wire Rope
Variants from €1.85
Regular price: €2.68
Pair of Pressing Jaws for Terminals with 9.0mm / 6.0mm Mini or 5.0mm Maxi Terminal / Pressing Width 12mm
Variants from €178.50
Regular price: €188.50
Stainless Steel Screw-On Clamp / Clamping Head M6 for 2-3mm Wire Rope
Regular price: €1.86
Rope Cross Clamp Mini for 2.5 - 3.0 mm Wire Rope
Variants from €1.65
Regular price: €1.87 Rope Cross Clamp Mini for 1.5 - 2.0 mm Wire Rope
Regular price: €1.65
Product information "Eye Swage Terminal for 2.0mm Wire Rope / Stainless Steel V4A"
Das Aug-Walzterminal wird verwendet, um Drahtseile anzubringen. Das Drahtseil wird ins Terminal eingedreht und anschließend verpresst.
| Drahtseil-Durchmesser (DS-Ø) in mm | Länge 1 (L1) in mm | Innere Länge (iL) in mm | Innendurchmesser (iD) in mm | Durchmesser 1 (D1) in mm | Stärke (S) in mm |
|---|---|---|---|---|---|
| 2,0 | 48 | 25 | 5,4 | 5,5 | 3,0 |
| 2,5 | 49 | 30 | 5,4 | 5,5 | 3,0 |
| 3,0 | 55 | 36 | 6,5 | 6,4 | 4,0 |
| 4,0 | 56 | 39 | 8,5 | 7,5 | 6,0 |
| 5,0 | 80 | 50 | 10,5 | 9,0 | 7,0 |
| 6,0 | 94 | 62 | 12,5 | 12,6 | 8,0 |
| 7,0 | 105 | 68 | 12,7 | 14,2 | 9,0 |
| 8,0 | 124 | 85 | 14,5 | 16 | 10 |
| 10 | 142 | 90 | 16,4 | 17,8 | 12 |
