Hydraulic Crimping Pliers C400 for DIN/EN 1411-3 Oval Crimping Clamps

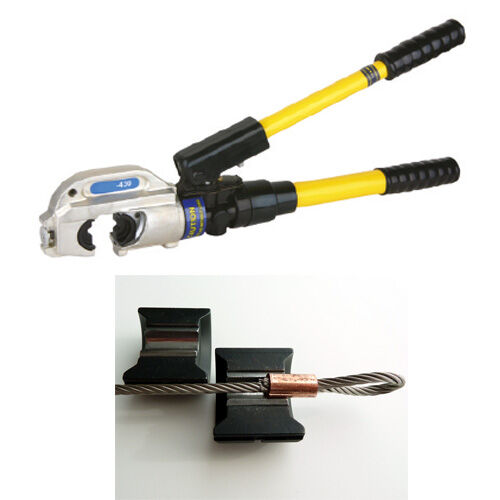

Hydraulic crimping pliers C400

For processing oval crimping clamps in accordance with DIN/EN.
Wire ropes up to 5 mm are crimped in a single operation with the manual pliers.The following pressing jaws are available:

- Z2.0 aluminum clamp Art. 1013920 / copper clamp 1013920C with 6-ct. profile (not according to DIN)
- Z2.5 aluminum clamp Art. 1013925 / copper clamp 1013925C
- Z3.0 aluminum clamp Art. 1013930 / copper clamp 1013930C
- Z3.5 aluminum clamp Art. 1013935 / Copper terminal block 1013935C
- Z4.0 Aluminum terminal Art. 1013940 / Copper terminal block 1013940C
- Z4.5 Aluminum terminal block Art. 1013945 / Copper terminal block 1013945C
- Z5.0 Aluminum clamp art. 1013950 / copper clamp 1013950C
- Z6.0 Aluminum clamp art. 1013960
- Z6.5 Aluminum clamp art. 1013965 - only for fiber ropes
