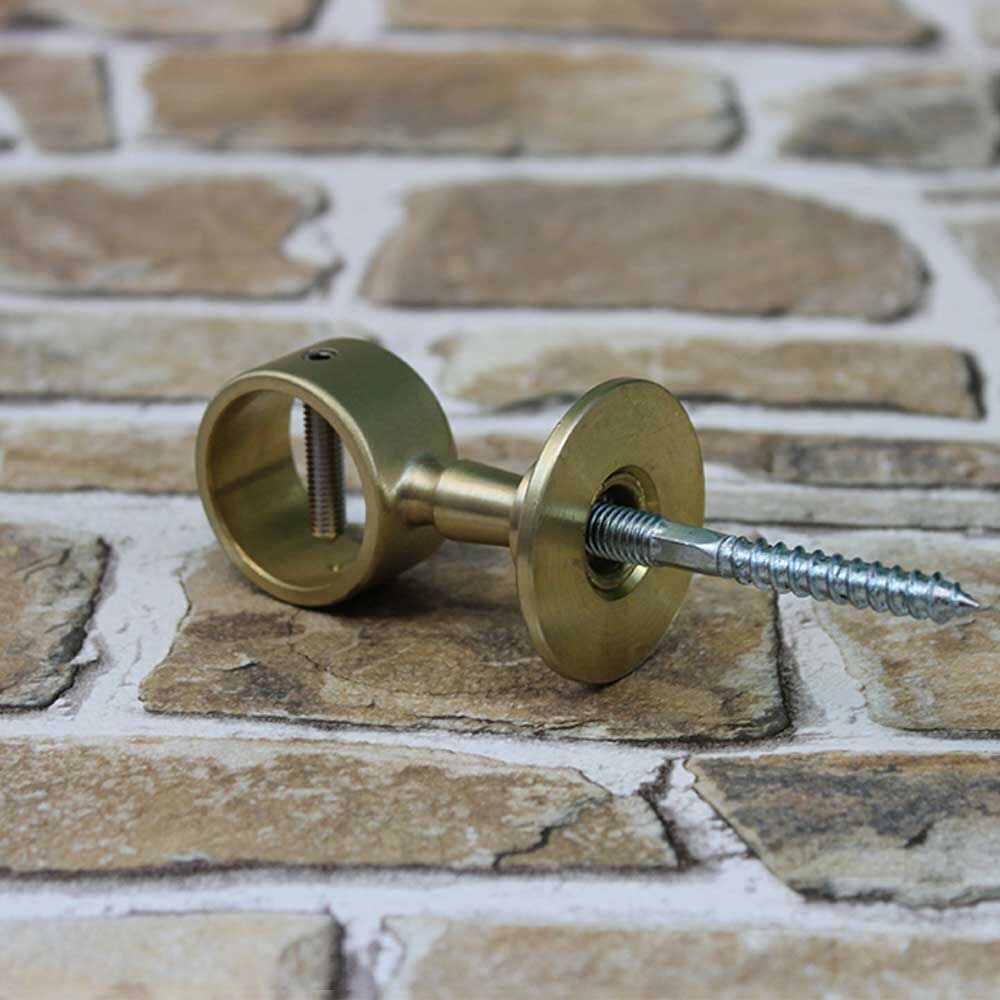

Rope Carrier - Matt Brass for 20mm Handrail Ropes

The high-quality cable supports for handrail cables offer an elegant fastening solution for your railing or handrail. The cable fixings can be used in a variety of ways, for example for installing handrail cords on stairs and for barriers. The timeless design of the cable brackets gives modern and traditional staircases a special aesthetic.


The cable brackets have a matt brass finish and offer a durable railing solution. This material is primarily suitable for indoor use, as the material may tarnish when exposed to the weather. For outdoor use, we recommend the use of stainless steel cable carriers and fittings.

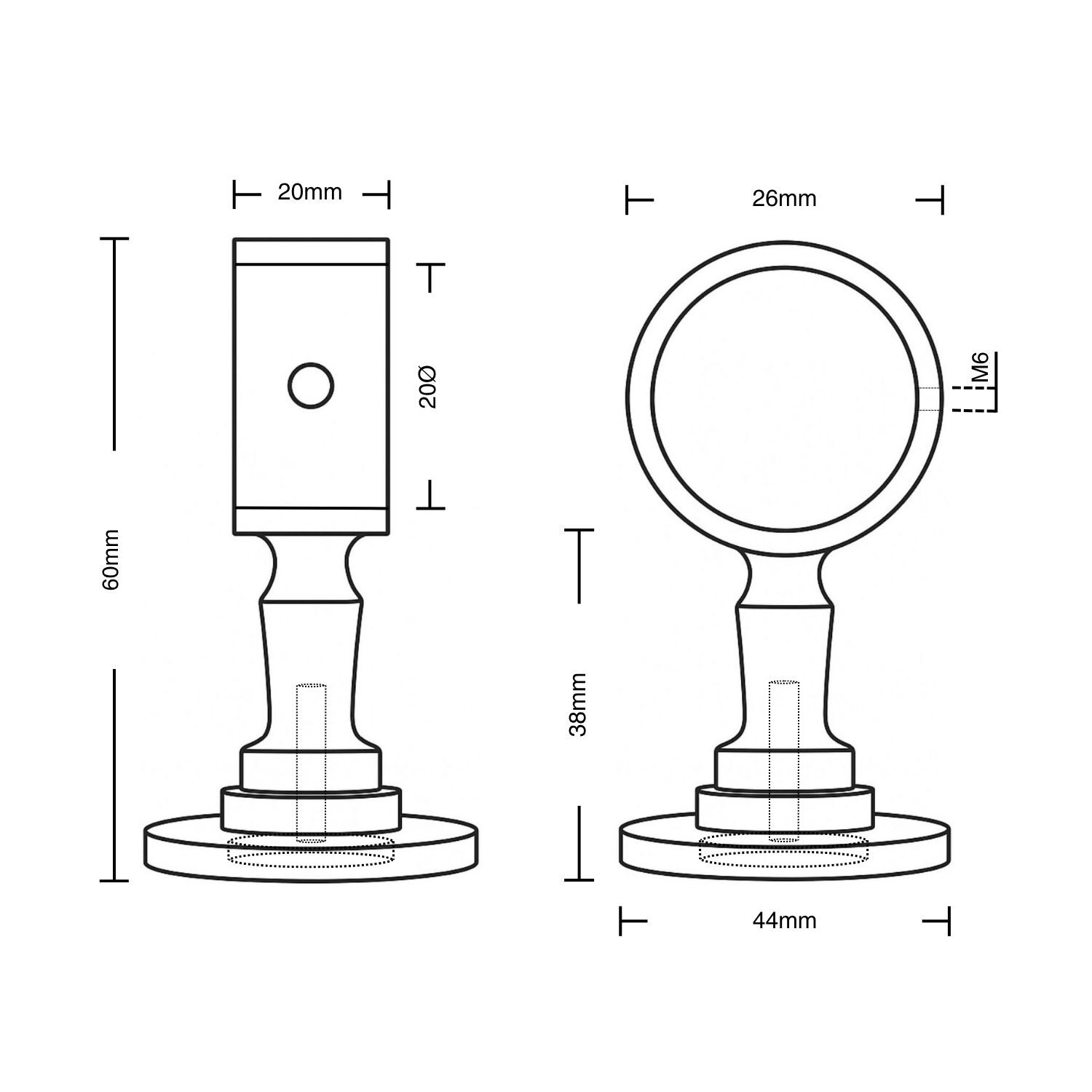

Dimensions:

Wall distance (wall - rope): 40mm / base plate diameter: 44mm


Installation

Here you will find the installation instructions for attaching the fittings and handrail ropes.

The recommended distance between two cable supports is between 80cm - 100cm, depending on how much slack you prefer for your handrail.

Inside corners and outside corners can be realized with either two cable carriers or one inside or outside corner carrier.


Scope of delivery:Note: The rope supports in conjunction with handrail ropes are not suitable for use as fall protection, personal safety or fall protection. They are primarily for decorative purposes.

• Rope carrier
• Grub screw with M6 thread (secures the rope from slipping in the rope carrier)
• Hanger bolt + dowel for wall mounting
