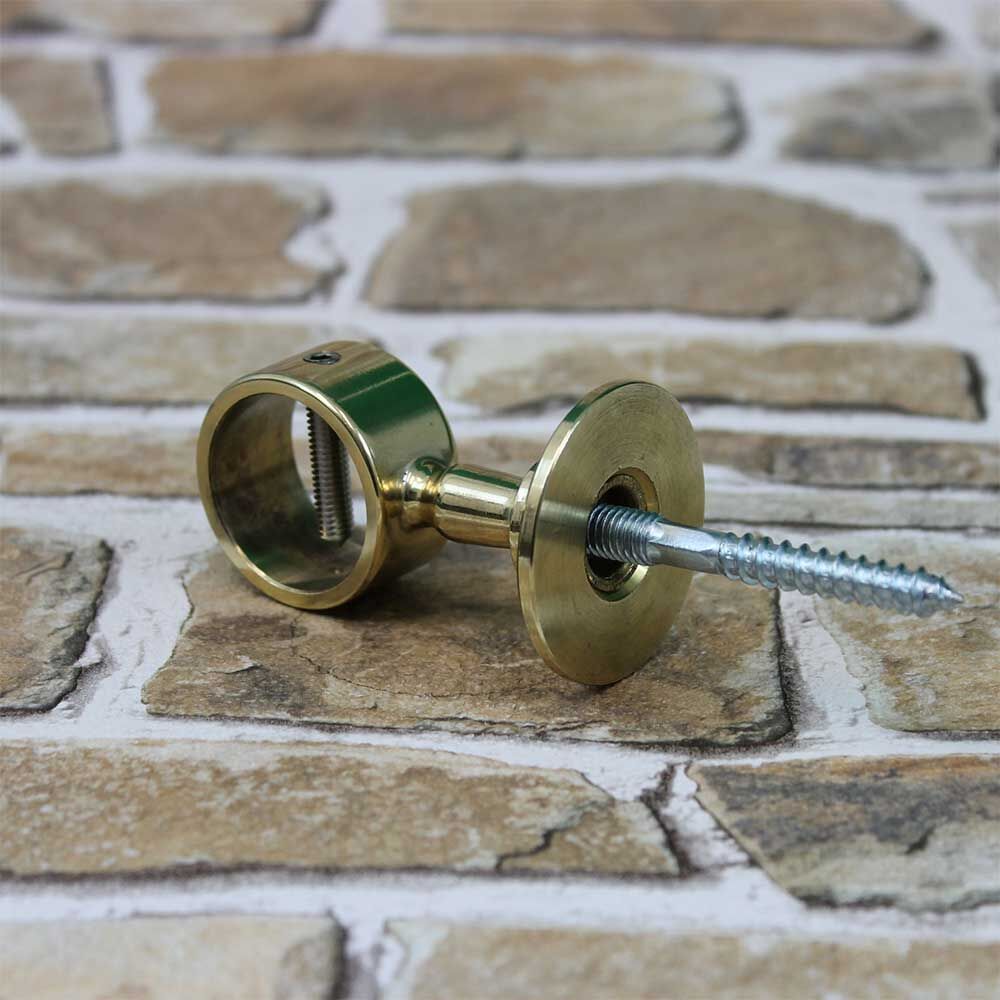

Rope Carrier - Shiny Brass for 25mm Handrail Rope

The high-quality rope carrier for handrail ropes offers an elegant fastening solution for your railing or handrail. The cable fixings can be used in a variety of ways, for example for installing handrail cords on stairs and for barriers. The timeless design of the cable brackets gives modern and traditional staircases a special aesthetic appeal.


The cable brackets have a shiny brass finish and offer a durable railing solution. This material is primarily suitable for indoor use, as the material may tarnish when exposed to the weather. For outdoor use, we recommend the use of stainless steel cable carriers and fittings.

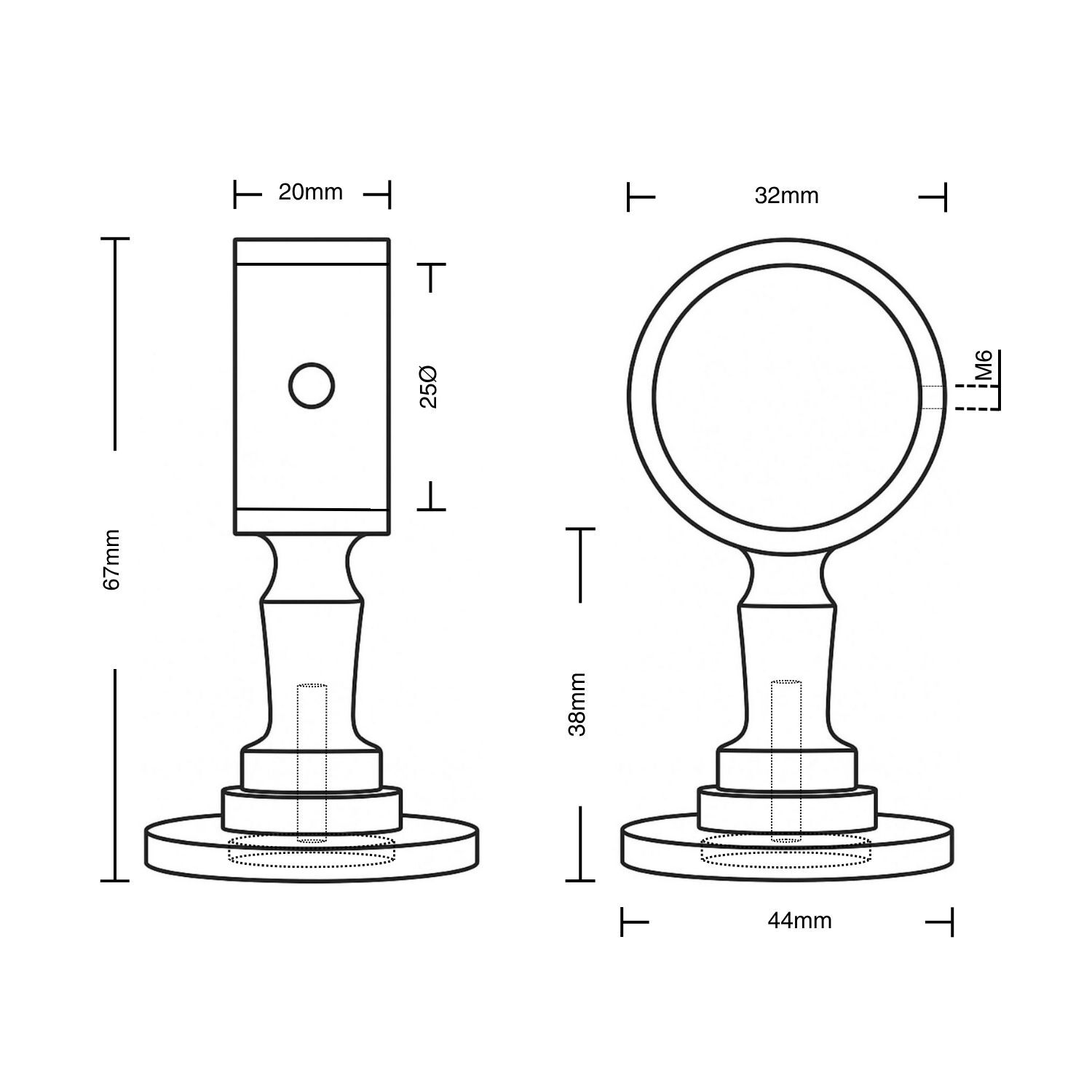

Dimensions:

Wall distance (wall - rope): 40mm / base plate diameter: 44mm


Installation

Here you will find the installation instructions for attaching the fittings and handrail ropes.

The recommended distance between two cable supports is between 80cm - 100cm, depending on how much slack you prefer for your handrail.

Inside corners and outside corners can be realized with either two cable carriers or one inside or outside corner carrier.


Scope of delivery:

• Cable carrier
• Grub screw with M6 thread (secures the cable from slipping in the cable support)
• Hanger bolt + wall plug for wall mounting

Note: The rope supports in conjunction with handrail ropes are not suitable for use as fall protection, personal safety or fall protection. They are primarily for decorative purposes.
